产品概述
插板阀显著特点：阀腔不积渣，特别适合于浆体输送及粉体物粒的输送。
设计制造 Design and manufacture: JB/T8691-1998
结构长度 structural length: GB/T15188.2-94
法兰连接 Flange connection: GB/T9113.1-2000 JB/T79-94
试验与验收 testing and acceptance: GB/T13927-92
主要零部件材质 Key parts material
|
阀体、上盖Valve body, upper cap |
碳钢、不锈钢Carbon steel, stainless steel |
|
阀板Valve plate |
不锈钢stainless steel |
|
阀杆Stem |
不锈钢stainless steel |
|
密封圈Seal ring |
四氟、橡胶PTFE,Rubber |
主要性能规范 Key performance
|
公称压力Nominal pressure |
PN |
|
壳体试验Casing test |
1.5XPN |
|
密封试验Leak test |
1.1XPN |
|
工作温度Operating temperature |
橡胶≤80℃ 四氟密封≤180℃
Rubber ≤80℃,PTFE≤180℃ |
|
适用介质Working medium |
干灰、纸浆、糖浆、污水、煤气粉末颗粒物、渣水混合物等Dry dust, paper pulp, syrup, sewage, gas, powder, particle, slag-water mix, etc. |

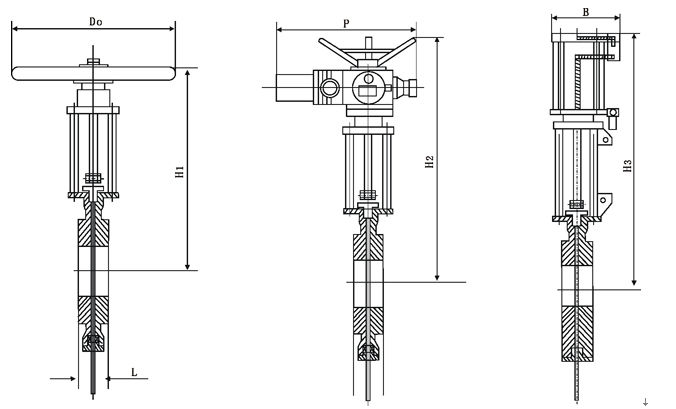

主要外形及连接尺寸Profile and connection dimension Unit:mm
|
DN |
L |
H1 |
H2 |
H3 |
D1 |
D2 |
D0 |
N-M |
P |
B |
|
100 |
51 |
405 |
705 |
585 |
180 |
156 |
240 |
8-M16 |
490 |
170 |
|
125 |
57 |
450 |
780 |
665 |
210 |
184 |
260 |
8-M16 |
490 |
190 |
|
150 |
570 |
510 |
810 |
770 |
240 |
211 |
280 |
8-M20 |
490 |
240 |
|
200 |
70 |
615 |
930 |
920 |
295 |
266 |
300 |
12-M20 |
520 |
335 |
|
250 |
70 |
715 |
1080 |
1175 |
355 |
319 |
320 |
12-M24 |
520 |
335 |
|
300 |
76 |
822 |
1140 |
1255 |
410 |
370 |
340 |
12-M24 |
520 |
335 |
|
350 |
76 |
975 |
1290 |
1455 |
470 |
429 |
360 |
16-M24 |
520 |
350 |
|
400 |
89 |
1024 |
1344 |
1559 |
525 |
480 |
400 |
16-M27 |
605 |
390 |
|
450 |
89 |
1235 |
1560 |
1926 |
585 |
548 |
450 |
20-M27 |
605 |
430 |
|
500 |
114 |
1265 |
1610 |
2226 |
650 |
609 |
500 |
20-M30 |
605 |
430 |
注：0.6MPa、1.0MPa、1.6MPa及美标150Lb等连接尺寸见附录。
Note: see the appendix for connection dimensions of 0.6MPa, 1.0MPa, 1.6MPa, American Standard 150Lb, etc. |
