设计制造 Design and manufacture: JB/T8691-1998
结构长度 structural length: GB/T15188.2-94
法兰连接 Flange connection: GB/T9113.1-2000 JB/T79-94
试验与验收 testing and acceptance: GB/T13927-92
主要零部件材质 Key parts material
|
阀体、上盖Valve body, upper cap |
碳钢、不锈钢Carbon steel, stainless steel |
|
阀板Valve plate |
不锈钢stainless steel |
|
阀杆Stem |
不锈钢stainless steel |
|
密封圈Seal ring |
橡胶、四氟、不锈钢、硬质合金Rubber, PTFE, stainless steel,hard alloy |
主要性能规范 Key performance indicators
|
公称压力Nominal pressure |
PN |
|
壳体试验Casing test |
1.5XPN |
|
密封试验Leak test |
1.1XPN |
|
工作温度Operating temperature |
橡胶≤80℃ 四氟密封≤180℃ 硬密封≤425℃Rubber 80℃, PTFE≤180℃, hard sealing ≤425℃ |
|
适用介质Working medium |
糖浆、纸浆、污水、煤浆、灰、渣水混合物Syrup, paper pulp, sewage, coal slurry, dust, slag-water mix |

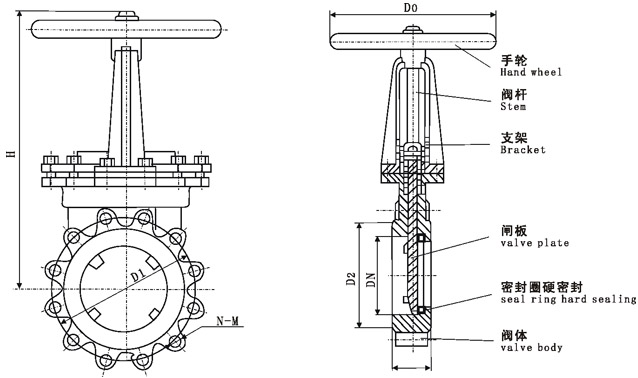

主要外形及连接尺寸Profile and connection dimension Unit:mm
|
公称压力Nominal pressure(MPa) |
公称通径Nominal through diameter（mm） |
L |
D |
D1 |
D2 |
H |
N-M |
D0 |
|
1.0 |
50 |
48 |
160 |
125 |
100 |
285 |
4-M16 |
180 |
|
65 |
48 |
180 |
145 |
120 |
298 |
4-M16 |
180 |
|
80 |
50 |
195 |
160 |
135 |
315 |
4-M16 |
220 |
|
100 |
50 |
215 |
180 |
155 |
365 |
8-M16 |
220 |
|
125 |
57 |
245 |
210 |
185 |
400 |
8-M16 |
230 |
|
150 |
57 |
280 |
240 |
210 |
475 |
8-M20 |
280 |
|
200 |
70 |
335 |
295 |
265 |
540 |
8-M20 |
360 |
|
250 |
70 |
390 |
350 |
320 |
630 |
12-M20 |
360 |
|
300 |
76 |
440 |
400 |
368 |
780 |
12-M20 |
400 |
|
350 |
76 |
500 |
460 |
429 |
885 |
16-M20 |
400 |
|
400 |
89 |
565 |
515 |
482 |
990 |
16-M22 |
400 |
|
450 |
89 |
615 |
565 |
532 |
1100 |
20-M22 |
530 |
|
500 |
114 |
670 |
620 |
585 |
1200 |
20-M22 |
530 |
|
600 |
114 |
780 |
725 |
685 |
1450 |
20-M27 |
600 |
|
700 |
130 |
895 |
940 |
800 |
1700 |
24-M27 |
600 |
|
800 |
130 |
1010 |
950 |
905 |
2000 |
24-M30 |
680 |
|
900 |
140 |
1110 |
1050 |
1005 |
2300 |
28-M30 |
680 |
注：0.6MPa、1.0MPa、1.6MPa及美标150Lb等连接尺寸见附录
|
